11)      Charge air cooler outlet

22)      (IMT) Intake manifold temperature sensor

33)      LP Boost/LP Temp sensor

44)      (MAF) Mass airflow sensor

55)      Humidity Sensor/Air inlet Temperature Sensor (AIT)

66)      (O2S) Oxygen Sensor

77)      (EGRT) Exhaust Gas Recirculation Temperature Sensor

88)      (IMP) Intake Manifold Pressure Sensor
s

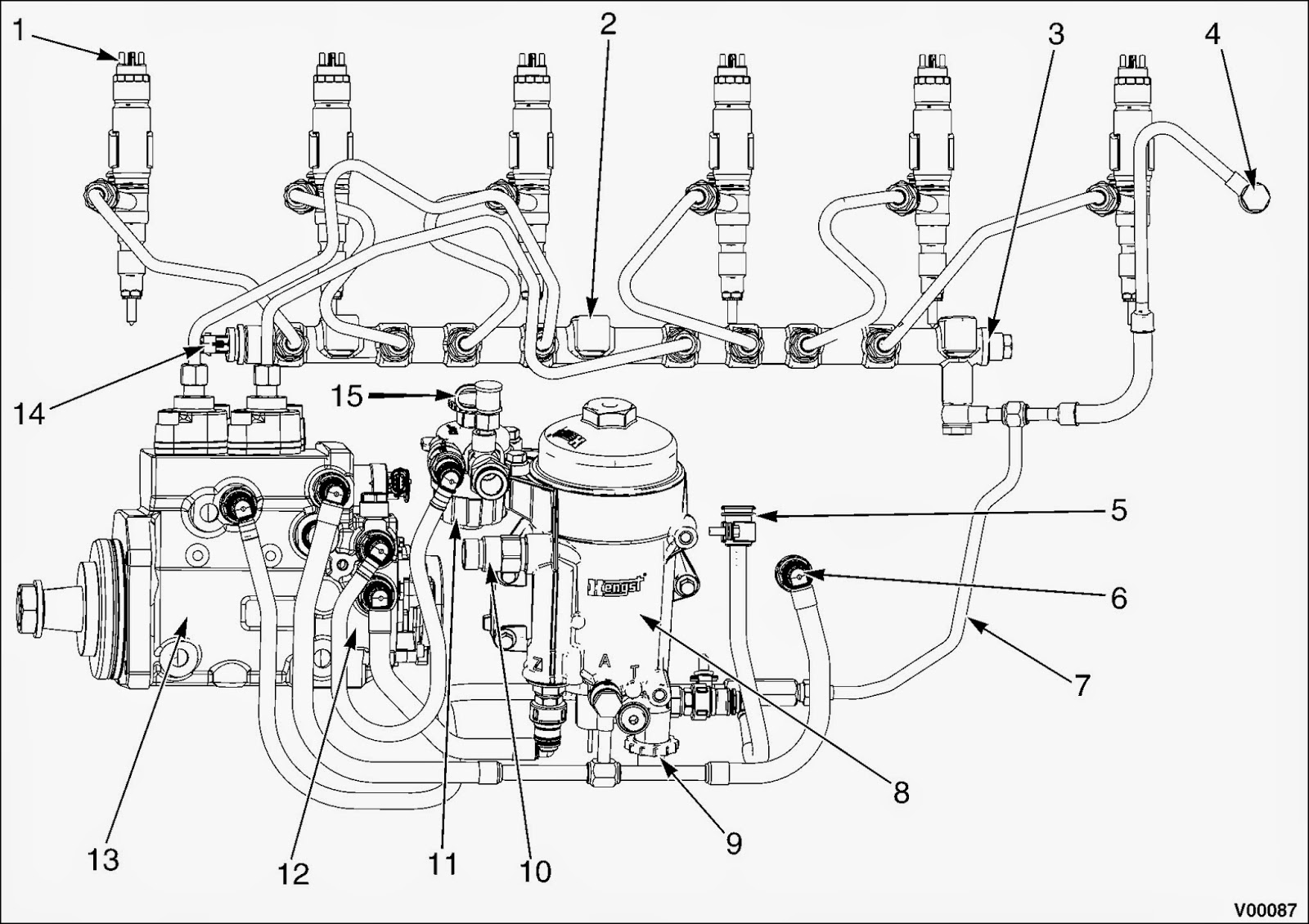

1
11) Injector (6 of them)
22) Fuel Rail
33) Fuel Rail Pressure Limiting Valve
44) Fuel Return from Cylinder Head
55) Engine Fuel Return Connection (to chassis filter)
66) Fuel Supply to DSI unit
77) Fuel Return Line
88) Fuel Filter Assembly
99) Drain Screw
110) Fuel Delivery Pressure Sensor
111) Fuel Primer Pump Assembly
112) LP Fuel Pump
113) HP Fuel Pump
114) (FRP) Fuel Rail Pressure Sensor
115) ?

Cold Start Assist System

e1) (CSFI) Cold Start Fuel Igniter
22) (CSFS) Cold Start Fuel Solenoid valve
33) (CSR) Cold Start Relay
